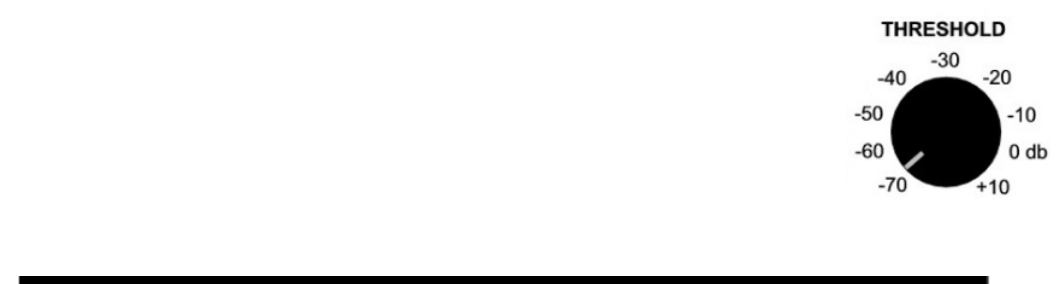

SETTING THE DECIMATOR THRESHOLD

Start by setting the Threshold for minimum, full

counterclockwise. Turn the Threshold control clockwise

until the desired effect of the downward expander is

achieved. The expander should start to operate when

there are gaps in the audio or as the input signal gets

close to the noise floor. NOTE: Setting this control to

high will cause the expander to start to cut off the input

signal to soon.

SPECIFICATIONS

Input Impedance

Maximum Input Level

Maximum Output Level

Bass Treble Cut Boost Level

Low/Mid parametric frequency

range

High/Mid parametric frequency

range

Compression Section

Decimator Noise Reduction

Power Requirements

Current Draw

Dimensions

500K ohms

+20dbu typical

+/- 15db

60Hz-1kHz

200Hz-6kHz

Based on Time Vector Processing

adaptive response auto makeup

gain

Greater than 80db

9V AC 1000ma

865mA

19” x 6” x 1¾”
